Commander-X F-1681X

* Images are for illustration purposes only

Available Seats:

Jet Count:
81

Dimensions:
93" x 200" x 51"

Share This Spa:

* Cal Spas reserves the right to enhance, modify or discontinue products at any time without notice. Specifications may change without notice. Dimensions are approximate.

INFO

SPECIFICATIONS

COLORS

OPTIONS

DOCUMENTS

REVIEWS

12-Person Swim Spa with 81 Jets

WRITE A REVIEW

Features: Elite™ Horizontal Cabinet, Cal Grip™ Cal Touch™, Cal Armor™

Dimensions: 93" x 200" x 51"

Get well and get fit! Enjoy a full Vertical Hydrossage as you stand against the swim spa while spending time with loved ones. Large enough for 12 people with all bench seating. Do not underestimate the power of the Jet System IV including two faithful jets; powerful enough for EXPERT level fitness swimmers! The space is big enough to fit a shark, but you will never find one in here. Why risk encountering one by swimming at the sea, get your Commander F-1681 today!

LOCATE DEALER REQUEST A BROCHURE REQUEST A QUOTE

#	SPECIFICATIONS	VALUE
1	Seating Capacity	12
2	Shell Color	Sterling Silver
3	Dimensions (W x L x H)	93" x 200" x 51"
4	Dry Weight - Lbs. (Kilograms)	2,000 (907 kg)
5	Filled Weight - Lbs. (Kilograms)	22,825 (10,353 kg)
6	Water Capacity - Gal. (Liters)	2,500 (9,463 L)
7	Eliminator High Performance™ Pump	1 x 6.0 BHP (1 x 3.0HP)
8	Swim Jet Pump Including 2.5" Plumbing and Hi Flow Main Drains	3 x 6.0 BHP (3 x 3.0 HP)
9	Operating Voltage	240V
10	LED Dual Hydro-Streamers Plus™ with Valve	Yes
11	Stainless Steel Jets: Exclusive Candy Cane Jets	23
12	Stainless Steel Vertical Hydrossage (Rain Jets)	54
13	Twin Pure Silk™ System Dual Ozonators with Mazzei Injectors and Mixing Chambers	Yes
14	Swim Spa Jet System	5 Swim Jet System V 2 River Jets 3 Power Stream Jets
15	Stainless Steel Exercise Bar	27"
16	Floor Mounted Swim Lane Marker	Yes
17	Fitness Anchors	Yes
18	Tether Anchor	Yes
19	Pillow(s)	Y-Pillow
20	Gate Valve(s)	Yes
21	Bio-Clean Filter™ with TeleWeir	100 Sq. Ft. (2 x 50 Sq. Ft.)
22	LED Spa Lighting	Multi Colored LED 2 x 5"
23	Whisper Power Unit™ Equipment with Full Color LCD Touch Display	BP20X Cal-Spa Touch4
24	Thermo-Shield™ Insulation Side Panels and Thermo-Layer Floor with ABS Liner	Yes
25	Beam-Lite™ 4x Cabinet Corners LED Lighting	Standard
26	WhisperHot™ Heating System	5.5 kW Titanium Heater
27	Cabinet Accessible Drain Valve	Yes
28	Pressure Treated Cabinet Frame	Yes
29	ELITE Horizontal Cabinet Panels and Beam Corner Colors: Coastal Gray, Mocha	Elite™ Horizontal
30	Spa Cover: Cal Armor™ (Weather Shield) Colors: Gray, Dark Brown, Black	5“ - 3“ Cal Armor™
31	Warranty (Structural)	10 Years
32	Warranty (Finish)	7 Years
33	Warranty (Parts)	5 Years
34	Warranty (Labor)	5 Years
35	Warranty (Cabinet)	5 Years

SHELL

ACRYLIC COLORS Label

CABINET

STYLE COLOR CHOICES

COVER

COVER COLORS

OPT22-900-XL

Thermo-Guard™ Full Foam Insulation
( This Option will Replace Thermo Layer )

OPT22-FS622

Freedom™ Sound System:
Bluetooth Connectivity, Powered Subwoofer and (4) Speakers ( 2x3“ Black 2x6“ White )

HYDRO-MASSAGE THERAPY BENEFITS

You can find many benefits to improving your mind and body with each spa we carry. Customize your Hydro-Massage Therapy to meet your objective.

SEATS

Seating

Enjoy lounge or bench style seating; keep an eye out for the cool off seat after your exercise.

*Swim Spa seating varies by model.

JETS

Exclusive Stainless Steel Candy Cane Jets

These jets are strategically placed to hit exact pressure points, which will allow your muscles to decompress. Jets are adjustable at your convenience.

ULTIMATE PERFORMANCE

Cal Spas prides itself on 100% custom built American-made Spas. We dedicate ourselves to build the most durable and functional spa that is on the market today.

PUMPS

Eliminator High Performance™ Pump

We have the most reliable motors in the industry. With less moving parts, these motors feature two independent winding speeds and a reverse-flow cooling system. Built to last a lifetime!

HEATER

Whisper Hot™ 5.5 kW Titanium Heater

Titanium Element in calcified Tube Titanium has become the solution to hot tub heater longevity, and has long been the best defense against chemical & mineral abuse.

CONTROLS

Cal Spas Touch4

Our control panel is a touch screen to make it easier to control your settings to your spa right at your fingertips.

HYDRO-PRO

Hydro-Pro Swim-Mill + Resistance I™

Endlessly walk, jog or swim at BEGINNER levels of resistance.

*Resistance Jets vary by model.

PURITY

It is necessary that the water in your spa stays purified, and with our filtration system, we make it easy for you.

OZONE

Twin Pure Silk™ System

Using Dual Ozonators with Mazzei Injectors Mixing Chambers, it kills microorganisms and prevents them from reproducing. No chemicals are added to the water, and won't interfere with the oxidation process.

BIO-FILTER

100 Sq. Ft. Bio-Clean™ with TeleWeir Gate

A special bacteria-fighting agent is molded into the fabric of the filter. This prevents harmful microbes and bacteria from reproducing. A TeleWeir Gate prevents debris from re-entering into your water system.

EFFICIENCY INSULATION

Our insulation is the best on the market. We have it down to a science for you to keep your spa protected and the heat locked in!

THERMO-SHIELD

Thermo-Shield™ Side Panel

Our cabinet walls contain premium insulation that is completely recyclable and produces less waste than traditional urethane foam. Additionally, it does not block passage to the spa.

FULL FOAM

Full Foam Insulation

By adding full foam into the spa structure, water is preserved so the heat does not release. This will reduce the time that it takes to heat and maintain water temperature.

*Optional Feature

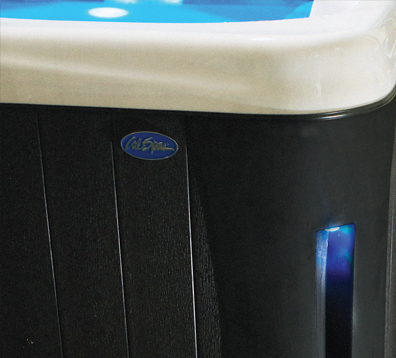

CABINET X-SERIES

Cal Elite™

These highly-durable panels uses revolutionary composite materials that will withstand the sun and elements keeping your spa looking newer that will complement any backyard landscape.

COVER X-SERIES

Cal Armor™ Spa Cover

Same durability and grade as our existing covers but 1/3 LIGHTER and 3X STRONGER!

STRENGTH STARTS UNDERNEATH

With a strong foundation our spas are built to last.

FIBER STEEL

Fibersteel™ Construction

Patented 7-layer laminate system reinforced with steel and wood. This combination creates one of the strongest shells in the world.

FRAME

Pressure Treated Wood Cabinet Frame

Our cabinet frames are treated to resist rot, corrosion and insects. Constructed using 1" galvanized steel fasteners, corner gussets, and vertical angle bracings for added beam support.

PLUMBING

VGB Approved Vacuum Break Intake System

This safety break feature automatically reduces pump suction in the event of an obstruction or intake blockage.

FOAM

Hydro Steel Foam

This high-density foam is added to support the plumbing underneath so nothing gets out of place

LIFE PLEASURES

To be in a spa feels great, add the extra, then it becomes perfect!

HYDRO-STREAMERS™

LED Dual HydroStreamers Plus™ with Valve

Up to eight breathtaking LED Hydro-Streamers™ instantly turn any backyard into a beautiful tropical paradise option on selected model.

EXTERIOR LIGHTING

Beam-Lite™ 4 Corner Lights

LIGHT UP THE NIGHT - Illuminate your spa cabinet with multi-colored 4 corner lighting!

SOUND SYSTEM

Freedom™ Sound System

Includes Bluetooth, Powered Subwoofer and 2 Speakers. Bluetooth technology lets you control your music through your smart device from anywhere inside, or outside your Cal Spas Hot Tub.
*This feature varies by model.

WI-FI

Wi-Fi Module

Using Wi-Fi allows you to control your spa from anywhere in your home. Turn your spa on and off with ease. Control your filter cycles, the temperature and the pumps. You choose!

*Optional Feature

WI-FI UPGRADE

Cal Connect™ System

Upgrade your Wifi connection to direct RF (Radio Frequency). Your spa will have its own local IP address and can talk to other smart appliances and devices like Alexa and can be controlled and monitored anywhere around the world via the built-in Cal Spas app
*This feature varies by model. Alexa is a registered trademark of Amazon.
